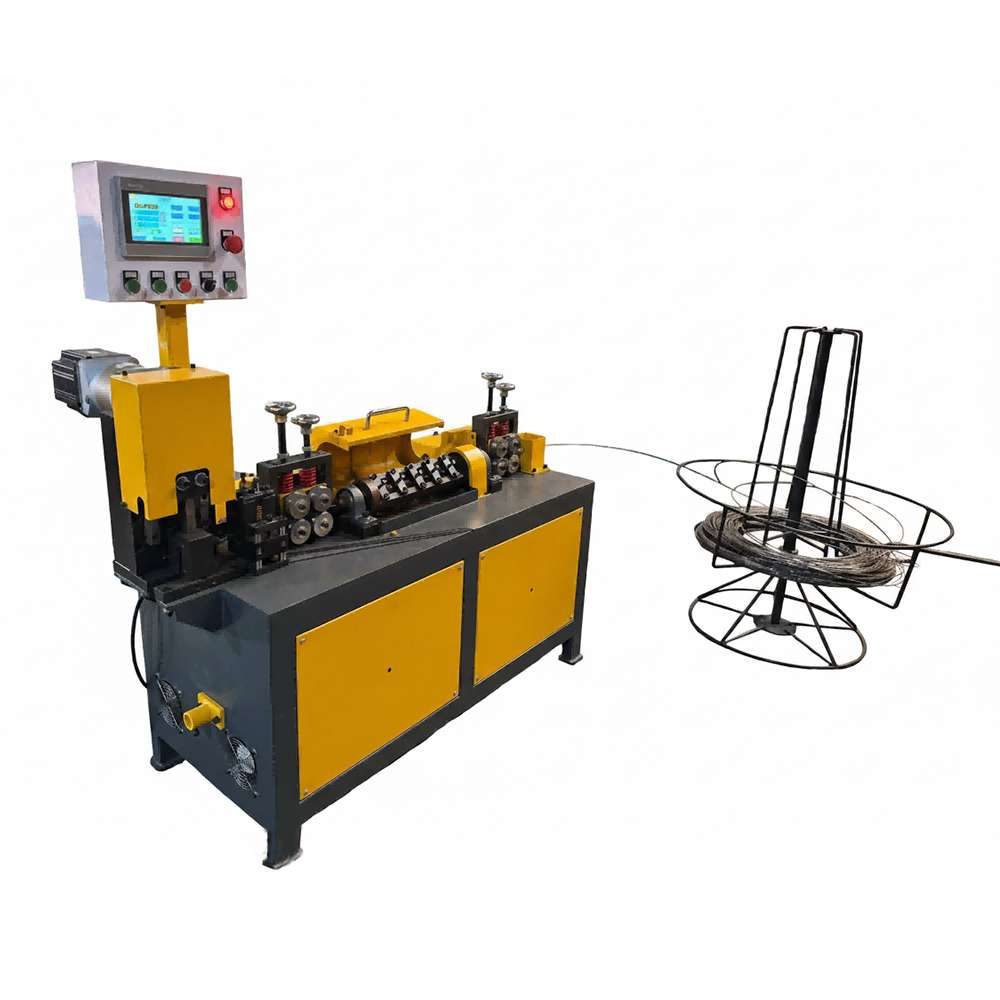

Wire Cutting Machine
This wire cutting machine is available in three different models, each designed to process a specific iron wire diameter range:
Model A: 1–4mm
Model B: 2–6mm
Model C: 4–8mm
All models are equipped with dual servo motors and fully controlled by a PLC system, ensuring stable performance and accurate wire length adjustment. You can easily set the cutting length through the control panel to match your production requirements.
√
High efficiency, processing approximately 40 meters of iron wire per minute.
√
High precision, cutting error ±0.3mm
√
Dual servo motors
√
Three models, covering iron wires with diameters of 1-4mm, 2-6mm, and 4-8mm.
- About Wire Cutting Machine
Multi-Angle Machine Images
This wire cutting machine is relatively small in size and requires minimal space. It generates little noise during operation, making it suitable for factory installations. You can place it in any suitable location.

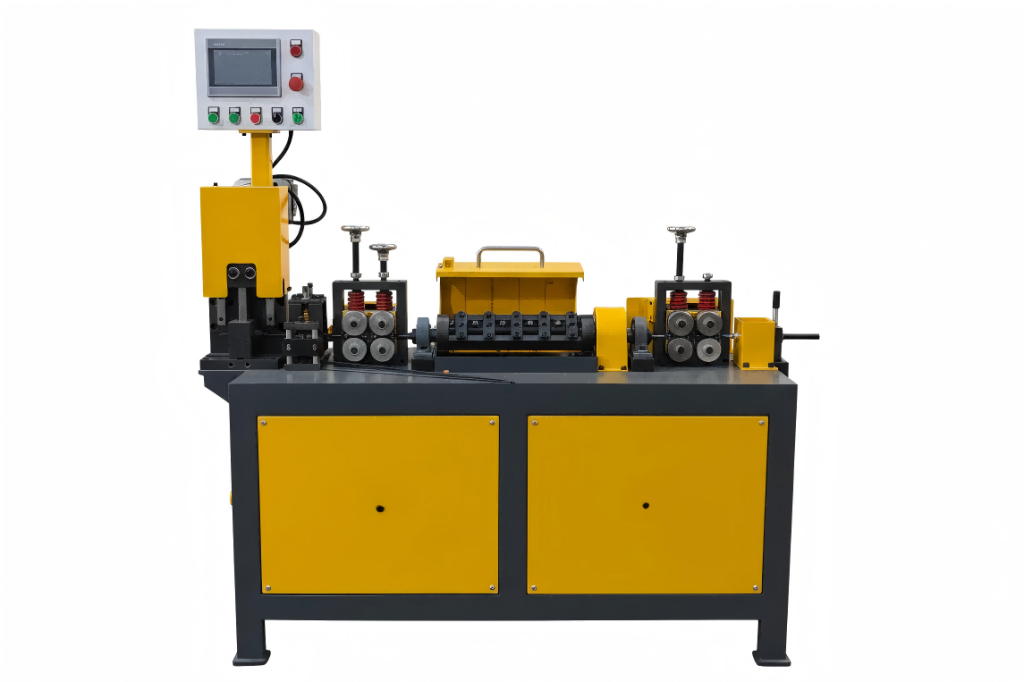

Front view：

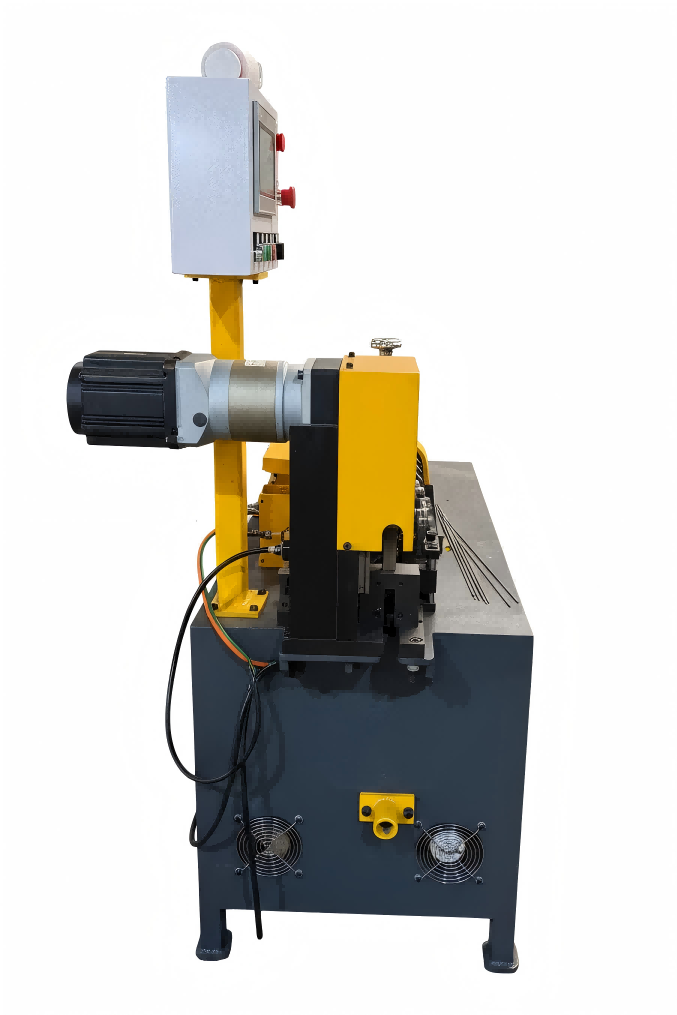

Side view：

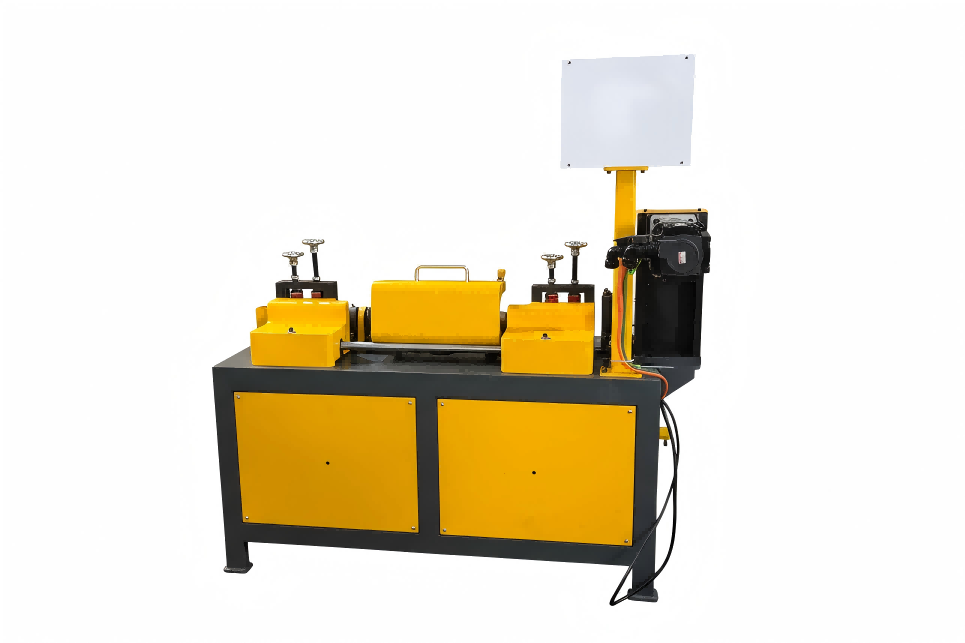

Rear view：

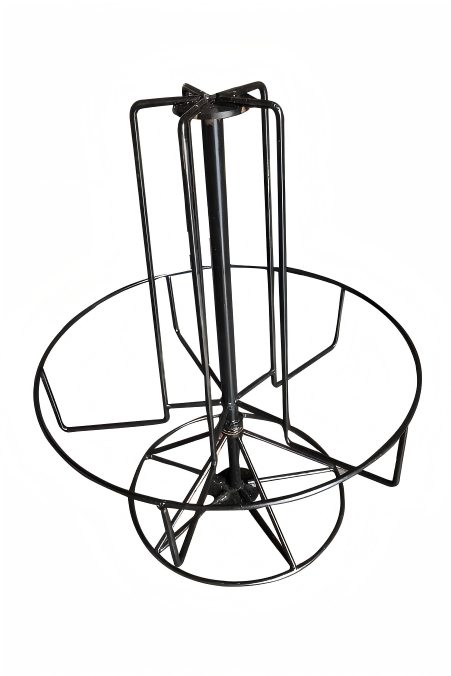

Material rack：
- About Wire Cutting Machine

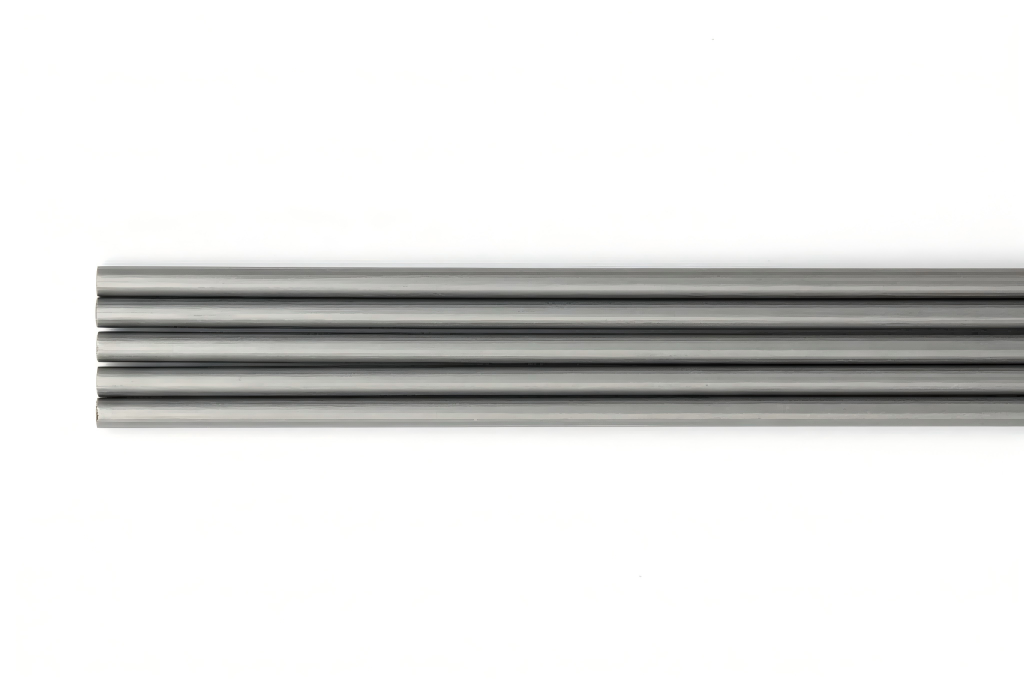

Finished Product Display
This wire cutting machine has undergone countless practical tests and is now a highly mature machine. The entire process is controllable, ensuring you get the straightened wire you need.
The wire cutting machine uses high-quality alloy blades that undergo vacuum heat treatment, ensuring smooth and flat cuts on the wires. The entire process is controlled by a PLC system to ensure consistent wire length.
√
Smooth cut surface
√
Straightening bent iron wire
√
Iron wire diameter 1-4mm/2-6mm/4-8mm
√
The length of the wire can be adjusted independently.
- About Wire Cutting Machine

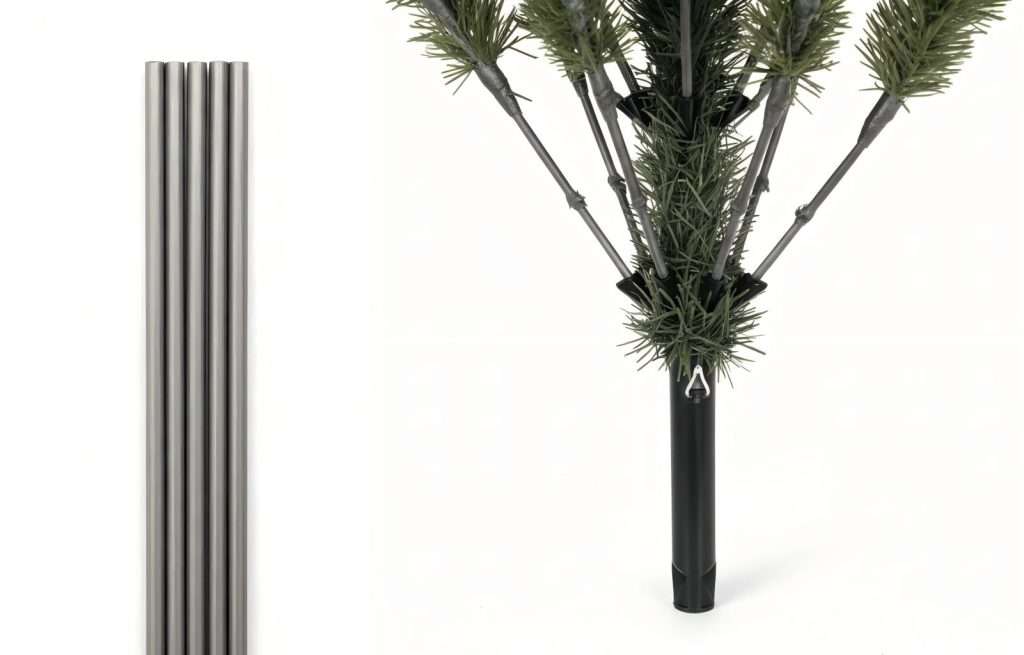

Finsh Iron Wire For Artificial Christmas Tree
The wire cutting machine serves as an auxiliary machine in the entire artificial Christmas tree production process, providing the wire needed for binding the branches and further improving your artificial Christmas tree production system.
In the production of artificial Christmas trees, a large amount of wire is needed to tie the branches. For example, a 1.5-meter-tall artificial Christmas tree typically requires about forty wires. These wires vary in length and are usually finished products processed by wire cutting machines.
In this artificial Christmas tree, excluding the central trunk and the base, all the PVC/PE leaves are tied to wire branches. If hinge connectors are used, two different diameters of wire are needed for tying the smaller and larger branches, which are then secured to the central trunk using hinge connectors and rivets. If a direct binding method is used, the same amount of wire is used, and the larger branches are ultimately tied to the central trunk with PP wire.
The role of the wire cutting machine is to complete the entire artificial Christmas tree production system. This machine is not essential in the overall production process; it is only necessary if long-term purchases of finished wire are acceptable.
- About Wire Cutting Machine
Video Showcase
This wire cutting machine supports two steps: wire straightening and wire cutting. The wire is typically placed on a rack next to the machine in a bent shape. The wire is first straightened by straightening wheels, then cut, and finally falls onto the finished product rack.
The entire process is controlled by a pre-programmed PLC panel, requiring no manual operation. The wire length can be adjusted according to individual needs, and the finished product is collected after the wire processing is complete.
- About Wire Cutting Machine
Machine Advantages
This automated wire cutting machine is ideal for wire processing in factories due to its efficiency, precision, small footprint, and low noise level. The machine’s operating language will be customized to your needs.
High Efficiency
This wire cutting machine has a very high production efficiency, capable of processing corresponding wires at a high speed, outputting a cut wire section in an average of about 2 seconds.
Automated Cutting
The wire cutting machine is controlled by a PLC system and operated through the front panel of the machine. The machine can perform cutting automatically according to the set program.
Multilingual Services
This wire cutting machine supports local language deployment. We usually set both Chinese and English languages in the machine to facilitate subsequent maintenance and your daily use.
Servo Motor Energy Saving
This machine is designed with dual servo motors, which can save a significant amount of electricity under normal use. If you live in an area with high electricity costs, this machine will be very user-friendly.
Small Footprint
The wire cutting machine has a compact overall structure, occupying only a small amount of space in the factory. Its dimensions of 1.3*0.4M allow you to place it anywhere.
Contact Our Professionals To Learn More
- About Wire Cutting Machine
Parameters Of Wire Cutting Machine
This wire cutting machine is composed of numerous high-quality components, resulting in a robust and durable structure. The servo motor is a non-frequency induction motor; if a frequency converter is required, this must be specified separately.
Machine Component Model：
| Item | Model | Power | Quantity | Voltage | Remark |
| Programmable Controller | XD3-24T-E | 1 | |||
| Drive | ASD620B120A00A | 1 | 220V | Wire Conveying | |
| Servo Motor | 130ST-M10025A-N | 2KW | 1 | 220V | |
| Drive | ASD620B120A00A | 1 | 220V | Wire Cutting | |
| Servo Motor | 130ST-M10025A-N | 1KW | 1 | 220v | |
| Touch Screen | TG765-UT | 1 | |||
| Servo Cable | ASD600EPW0030/ASD600EEN0030 | 1 | |||
| Straightening Shaft Motor | AT500-T3-4R0G/5R5PB | 3KW | 1 | ||
| 485 Communication Card | 485 | 1 | |||
| External Encoder | S380G1-5000BM | 1 | |||
| Braking Resistor | 500W100R | 1 | |||
| Production Efficiency | Approximately 1.0-3.0mm wire diameter, 35-45m/min | ||||
1-4mm Wire Cutting Machine Parameters：
| Processing Iron Wire | Ordinary Iron Wire |
| Weight | Approximate 200KG |
| Precision Error | ± 0.5 |
| The Maximum Rotational Speed Of The Straightening Shaft | 22000/MIN |
| Wire diameter | 1-4mm |
| Wire Cutting Length Adjustment Range | Arbitrary Range |
| Input Power | 380V/50HZ/3PH |
| Size | 1300mm*400mm*800mm |
Comparison Of Multiple Models：
| Model | 1~4mm (Dual servo) | 2~6mm (Dual servo) | 4~8mm (Dual servo) |
| Electrical | Three phase four wire+220v | Three phase four wire+220v | Three phase four wire+220v |
| Straightening | 6 Group | 6 Group | 6 Group |
| Wire feeding wheel group | 4 Group | 4 Group | 4 Group |
| Material of wire feeding wheel group | 40# Chromium | 40# Chromium | 40# Chromium |
| Servo motor power | Cutting blade 1.0kW, wire feeding 2.6kW | Cutting blade 1.5kW, wire feeding 2.6kW | Cutting blade 2.6kW, wire feeding 2.6kW |
| Wire Range | 1–4mm iron wire and stainless steel below 4mm | 2–6mm iron wire and stainless steel below 4mm | 4–8mm iron wire and stainless steel below 6mm |
| Appearance dimensions | 1350*550*1400mm | 1350*550*1400mm | 1350*550*1400mm |
| Perimeter of wire delivery | Unrestricted | Unrestricted | Unrestricted |
| Storing data | 99999 Group | 99999 Group | 99999 Group |
| Wire delivery speed | 50m/min | 50m/min | 50m/min |
| Wire delivery accuracy | ±0.3mm | ±0.3mm | ±0.3mm |
| Control system | Straightening machine control system | Straightening machine control system | Straightening machine control system |
| Control panel | Button | Button | Button |
- About Wire Cutting Machine
Packaging And Shipping
Wire cutting machines are typically packaged in wooden crates, with the bottom secured with wooden boards for added insulation. In addition to the standard machine parts, we will include some easily damaged spare parts for your replacement.
For packaging, we typically use wooden crates to seal the machines. Inside the crate, wooden strips are attached to the bottom to secure the machine and prevent it from shifting or tilting. The machine itself is further covered with plastic film for protection in case of accidents, and the material rack is placed next to the machine. This is our usual packaging and sealing method. If you have any additional requirements, please contact us.
Regarding shipping, we will submit the order to the factory after order confirmation. The machine will generally be completed within about two weeks. The completion time depends on the recent order volume; it usually takes longer during peak season. After production, the machine will be sealed and shipped to the designated port. If you have a local agent, you can also have them handle the shipping.
We will monitor the entire process to ensure you receive the latest updates. If you have any specific requirements, please let us know, and we will do our best to fulfill them.
- About Wire Cutting Machine
Similar Machines
RUNYI CRAFTS offers a variety of wire straightening and cutting machines. These machines are similar in function, but each model can handle different wire diameters and has its own unique wire processing methods.
Frequently Asked Questions
Find answers to common questions about RUNYI CRAFTS’ products, services, and processes.
What is the function of the wire cutting machine?
The wire cutting machine is mainly used for cutting wire. This machine can process 35-45 meters of wire per minute.
What are the different models of wire cutting machines?
There are three models of wire cutting machines: 1-4mm, 2-6mm, and 4-8mm. All models are equipped with dual servo motors and are fully controlled by a PLC system.
How does this machine work?
The wire cutting machine is controlled by a PLC system, making it fully automated, and has a control panel. Workers are responsible for feeding and collecting the wire, placing it on the feeding rack and collecting the cut wire.
What role does this machine play in the production of artificial Christmas trees?
The wire produced by the wire cutting machine is used for binding the branches in the production of artificial Christmas trees. Binding the branches of artificial Christmas trees requires two different diameters and two types of wire; this machine plays a crucial role in completing the production system.
How are wire cutting machines packaged?
The machine is usually packaged in a wooden crate with small wooden blocks at the bottom to secure it. The machine is wrapped in plastic film for waterproofing and protection, and a feeding rack is placed next to the machine.
How long will it take to obtain the machine?
Once we confirm the order, we will begin manufacturing the machine. The production time is generally around 7-14 days. After completion, the machine will be packed and shipped to the destination port. During peak season, the time may increase to approximately 18-25 days.
What to do if the machine breaks down later?
We will place some easily damaged parts in the wooden crate so you can replace any vulnerable components. If you encounter any technical problems, we will contact you online and assist you via video. If the problem persists, we will send an engineer to perform maintenance.
