How to Build an Efficient Artificial Christmas Tree Production Line from Scrat
With the rapid growth of the artificial Christmas tree market, setting up an efficient Christmas tree production line is undoubtedly a great choice. It not only helps you quickly respond to market demands but also reduces production costs. In this article, we’ll guide you through how to build an artificial Christmas tree production line from scratch, helping you stand out in this competitive market.
Step 1: Confirm Your Production Needs and Conditions
Before setting up your production line, you need to confirm the following key factors:
– Production workshop space: Determine the space required for production equipment and operators.
– Power supply: Ensure the voltage, current, and electrical setup match your equipment’s requirements.
– Budget and expected output: Set realistic production goals based on your market demand and budget.
Confirming these factors will help you plan your production line efficiently.
PVC Leaves
PE Leaves
Step 2: Choose the Right Type of Artificial Christmas Tree Leaves
Depending on market demand, you can choose to produce different types of artificial Christmas tree leaves. There are mainly two types available:
- PVC Leaves: Generally cheaper, used in lower-end products. PVC leaves are ideal for mass production, though their appearance and feel are not as realistic as PE leaves.

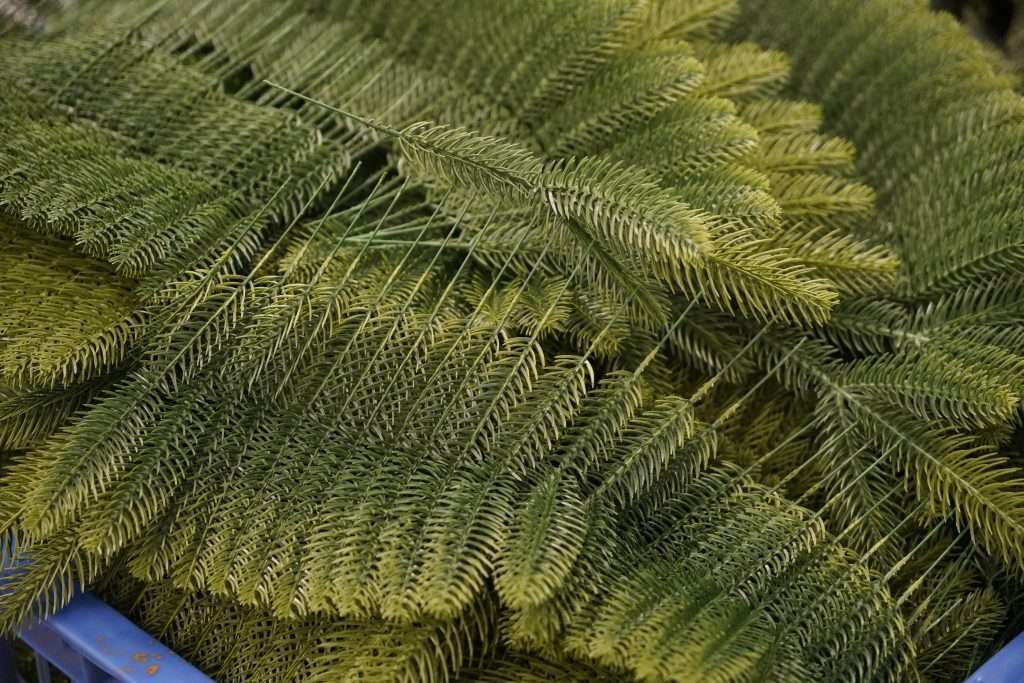

- PE Leaves: These have become the mainstream choice in the market due to their realistic appearance and soft feel, making them very popular in high-end products.
Here, we’ll focus on the production process and required equipment for PE Christmas Trees.
Step 3: Required Equipment and Process for PE Christmas Tree Production
To efficiently produce high-quality PE Christmas tree leaves, you need the following key equipment:
- PE Injection Machine :Used to produce PE tree leaves by melting and injecting PEpellets into molds, forming standardized leaf shapes.

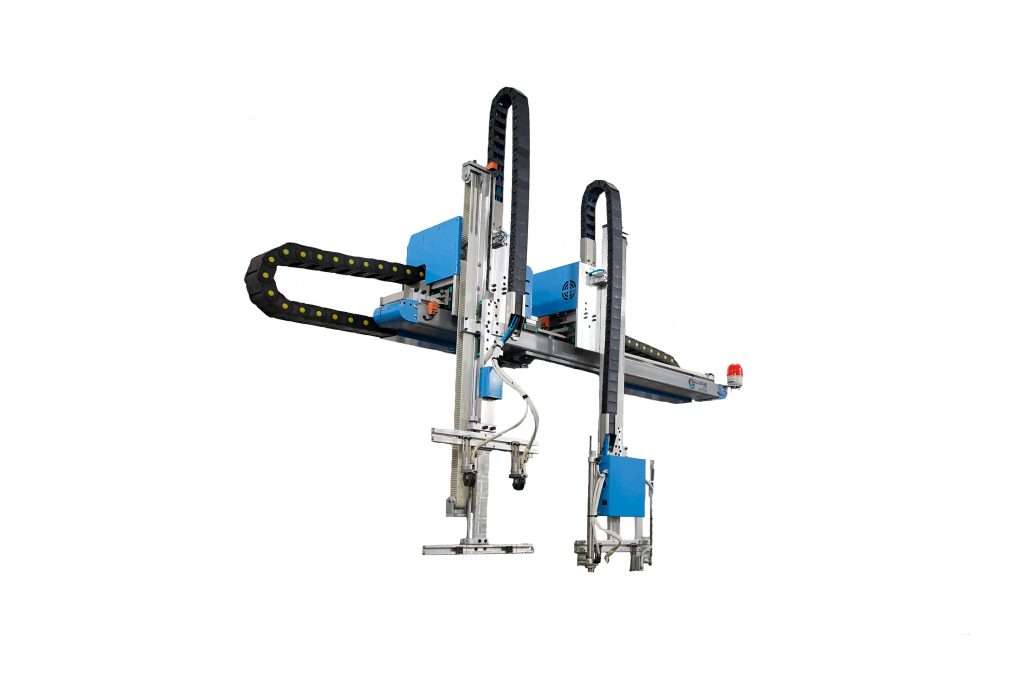

- Robot Arm : Automatically removes the molded PE leaves from the injection molding machine and collects them into a dedicated leaf collector.

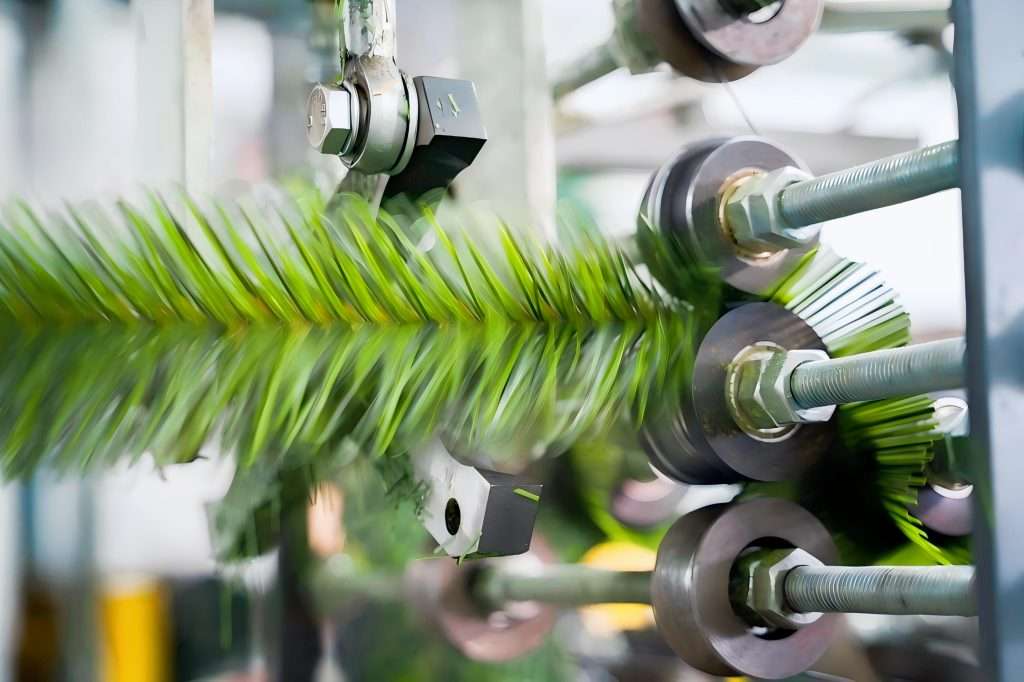

- Christmas Tree Branch Binding Machine : Used to bind PE leaves onto tree branches, making the tree fuller and more natural.
- Artificial Christmas Tree Head Binding Machine: Fixes the bound PE leaves to the tree trunk, completing the assembly of the Christmas tree.
In addition, you will need auxiliary equipment:

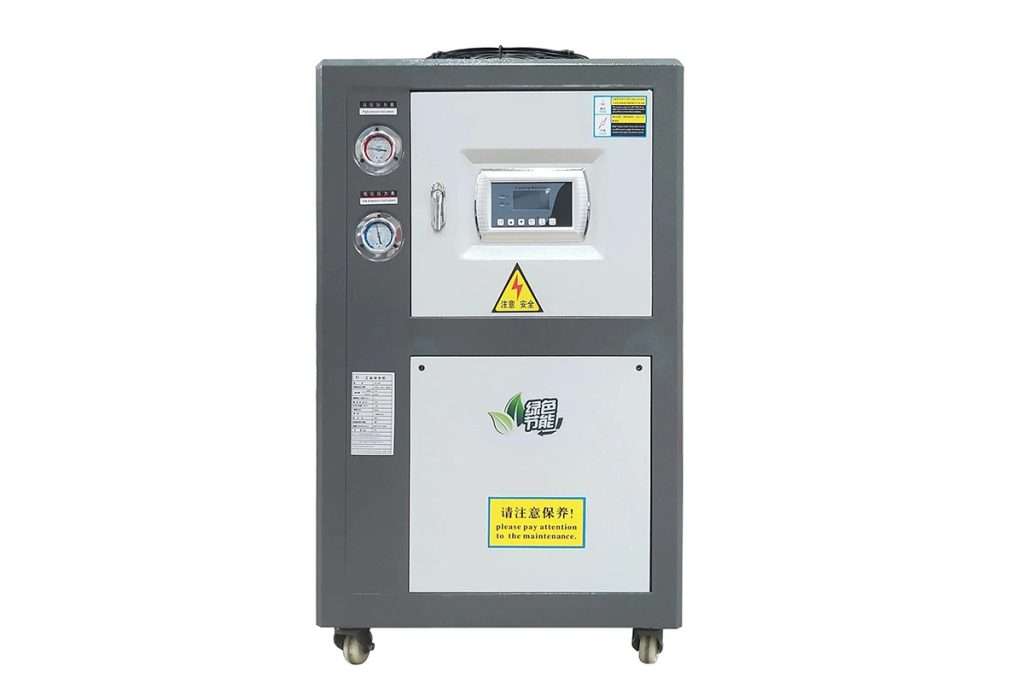

- Air-Cooled Chiller: Helps cool the injection molding machine to ensure smooth molding.

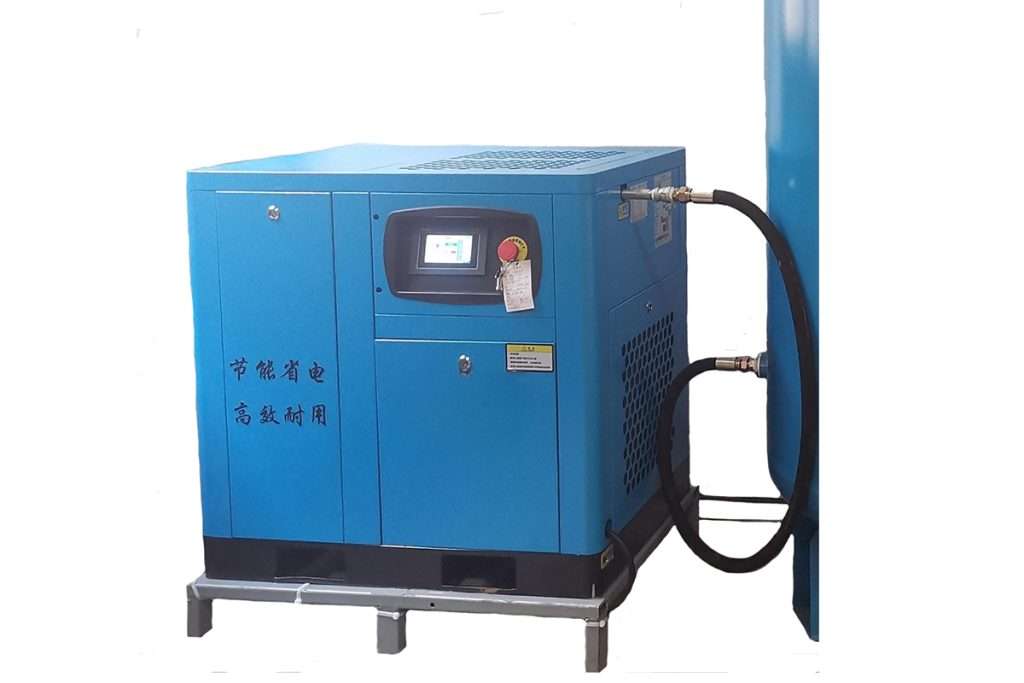

- Air Compressor: Provides compressed air for the operation of the robot arm and other automated equipment.
Step 4: Prepare the Necessary Materials
To ensure smooth production, you will need the following raw materials and accessories:
- PE Pellets: The primary raw material for producing PE tree leaves.
- PE Molds: To form standardized PE tree leaves.
- Plastic Coated Wire: Used for supporting the molds during the injection process.
- PE Baskets: To collect molded PE leaves.
- Hanging Rings: Used to fix the leaves to the branches.
- Artificial Christmas Tree Feet: To support the finished trees.
- PP Yarn: Used in the branch binding machine to secure the leaves.
If you plan to add a flocking effect to the tree leaves, you will also need flocking powder, glue, and fire-retardant liquid.
Step 5: Basic Machine Parameters
Here are some key parameters for the equipment commonly used in artificial Christmas tree production lines, helping you understand their performance:
PE Injection Machine :
| Pump Core Diameter(S2.5A/T2.5A/T3.5A) | 38mm/28mm/28mm |
| Pump Core Length(S2.5A/T2.5A/T3.5A) | 290mm/290mm/350mm |
| Injection Volume(S2.5A/T2.5A/T3.5A) | Single-color 32g/Two-color 28g/Two-color 30-32g |
| Injection Pressure(S2.5A/T2.5A/T3.5A) | 2100psi |
| Mold Damping Force(S2.5A/T2.5A/T3.5A) | 1200psi/1200psi/1500psi |
| Mold Moving Stroke(S2.5A/T2.5A/T3.5A) | 215mm |
| Maximum Mold Thickness(S2.5A/T2.5A/T3.5A) | 215mm/280mm/280mm |
| Maximum Mold Width(S2.5A/T2.5A/T3.5A) | 215mm/400mm/450mm |
| Minimum Mold Width(S2.5A/T2.5A/T3.5A) | 100mm/100mm/200mm |
| Maximum Oil Pump Pressure(S2.5A/T2.5A/T3.5A) | 2500psi |
| Motor Power(S2.5A/T2.5A/T3.5A) | 7.5kw |
| Electric Heating Power(S2.5A/T2.5A/T3.5A) | single color-3.2kw/two color-3.6kw/two color-5.4kw |
| Weight(S2.5A/T2.5A/T3.5A) | 1800kg/1800kg/2070kg |
Christmas Tree Branch Binding Machine :
External Dimensions | Approximately 1940 x620 x1060 mm |
Packaging Dimensions | Approximately 1760 x640 x940 mm |
Voltage | 220v |
Powder | 1200-1700w |
Applicable Wire Size | Diameter of 2.0-6.0 mm (straight/single-strand iron wire) |
Applicable Product Size | Wire diameter: 2-6 mm Branch length: 100-650 mm Supports 1-20 binding sections Allows 1-8 branching sections for Christmas tree branch production |
Design Speed | 20,000-40,000 pieces per day |
Binding Sections | 1-20 sections |
Robot Arm :
Body Width | 1480mm |
Body Height | 1500mm |
Allow the mold to be lower than the installation plane | 150mm |
Allow the mold to be higher than the installation plane | 150mm |
Maximum Wire Length | 350mm |
Wire Feeder Type | Distance adjustable, Type A |
| Wire Feeder Installation Method | Hanging |
| Number of Outlets | 1 or 2 |
| Wire diameter | 0.9mm-1.4mm |
| Line spacing | ≥28mm |
| Drainage method | Drainage method |
| Discharging method | Straight Line |
Why Choose Our Artificial Christmas Tree Production Equipment ?
Our PE injection molding machines, branch binding machines, and robot arms are designed for high efficiency and stability. These machines can significantly increase production efficiency, reduce labor costs, and ensure consistent product quality. Whether you are entering the artificial Christmas tree production industry or expanding your existing operation, our equipment will provide strong support.
Conclusion
Building an efficient PE Christmas tree production line from scratch is a straightforward process when you select the right equipment, secure enough raw materials, and set up proper production conditions. With the growing market demand, having a highly efficient production line will give you a sustainable competitive edge and help you capture a larger share of the market.
If you have any questions or need more information, feel free to contact us. We offer professional equipment and technical support.
