Air-Cooled Chiller
An air-cooled chiller is a refrigeration system that uses the surrounding air as a condensing medium. It absorbs heat from a space by circulating water or other fluids, and then rejects the heat to the ambient air. The working principle of an air-cooled chiller is based on heat transfer. A cooling liquid (such as water) first passes through an evaporator, absorbing heat from the space to be refrigerated. The compressor then compresses and heats the refrigerant gas, which flows through a condenser and dissipates the heat to the ambient air. The refrigerant condenses into a liquid in the process and returns to the evaporator, where the cycle repeats.
Voltage: 220V/50HZ
Packaging：Wooden Box
- About Air-Cooled Chiller
Product Parameter
| Item | Voltage | Cooling Capacity | Refrigerant | Compressor | Blower | |||||
| Name | Kcal/H | KW | Name | Control Method | Type | Power(KW) | Air Volume | Power(KW) | Heat Dissipation Temperature | |
| 1HP | 220V/50HZ | 2500 | 2.8 | R22 | Capillary | Vortex | 0.75 | 1250 | 0.15 | ≤35°C |
| 2HP | 5000 | 5.6 | 1.5 | 2350 | 0.15 | |||||
| 3HP | 380V/50HZ | 7500 | 8.4 | 2.25 | 3216 | 0.16*2 | ||||
| 5HP | 12500 | 14 | 3.75 | 6570 | 0.18*2 | |||||
| 6HP | 15000 | 16.8 | 4.5 | 6570 | 0.18*2 | |||||
| 8HP | 20000 | 22.4 | 6 | 9800 | 0.25*2 | |||||
| 10HP | 25000 | 28 | 7.5 | 9800 | 0.25*2 | |||||
| 15HP | 37500 | 42 | 11.25 | 17000 | 0.6*2 | |||||
| 20HP | 50000 | 56 | Expansion valve | 15 | 26640 | 0.63*3 | ||||
| 25HP | 62500 | 70 | 18.75 | 34000 | 0.63*2 | |||||
| 30HP | 75000 | 84 | 22.5 | 51000 | 0.68*3 | |||||
| Item | Evaporator | Water Pump | Machine Description | |||||
| Name | Water tank capacityWater tank capacity(L) | Pipe diameter | Water flow | Power(KW) | Lift(M) | Weight(KG) | Size(CM) | Fans(MM) |
| 1HP | 40 | 6 | 40(L/min) | 0.37 | 18 | 60 | 85*52*80 | 350*1 |
| 2HP | 40 | 6 | 40(L/min) | 102 | 85*52*80 | |||
| 3HP | 60 | 25 | 100(L/min) | 160 | 105*57*119 | 350*2 | ||
| 5HP | 70 | 25 | 100(L/min) | 190 | 130*65*130 | 400*2 | ||
| 6HP | 70 | 25 | 120(L/min) | 190 | 130*65*130 | |||
| 8HP | 140 | 40 | 200(L/min) | 1.1 | 20 | 380 | 150*75*149 | 450*2 |
| 10HP | 140 | 50 | 200(L/min) | 1.5 | 380 | 150*75*149 | ||
| 15HP | 210 | 50 | 220(L/min) | 680 | 175*86*161 | 550*2 | ||
| 20HP | 310 | 65 | 30(T/h) | 2.2 | 22 | 830 | 187*110*179 | 500*4 |
| 25HP | 310 | 65 | 30(T/h) | 1200 | 187*110*179 | 630*3 | ||
| 30HP | 450 | 80 | 54(T/h) | 4 | 20 | 1330 | 242*95*196 | 550*3 |
- About Air-Cooled Chiller

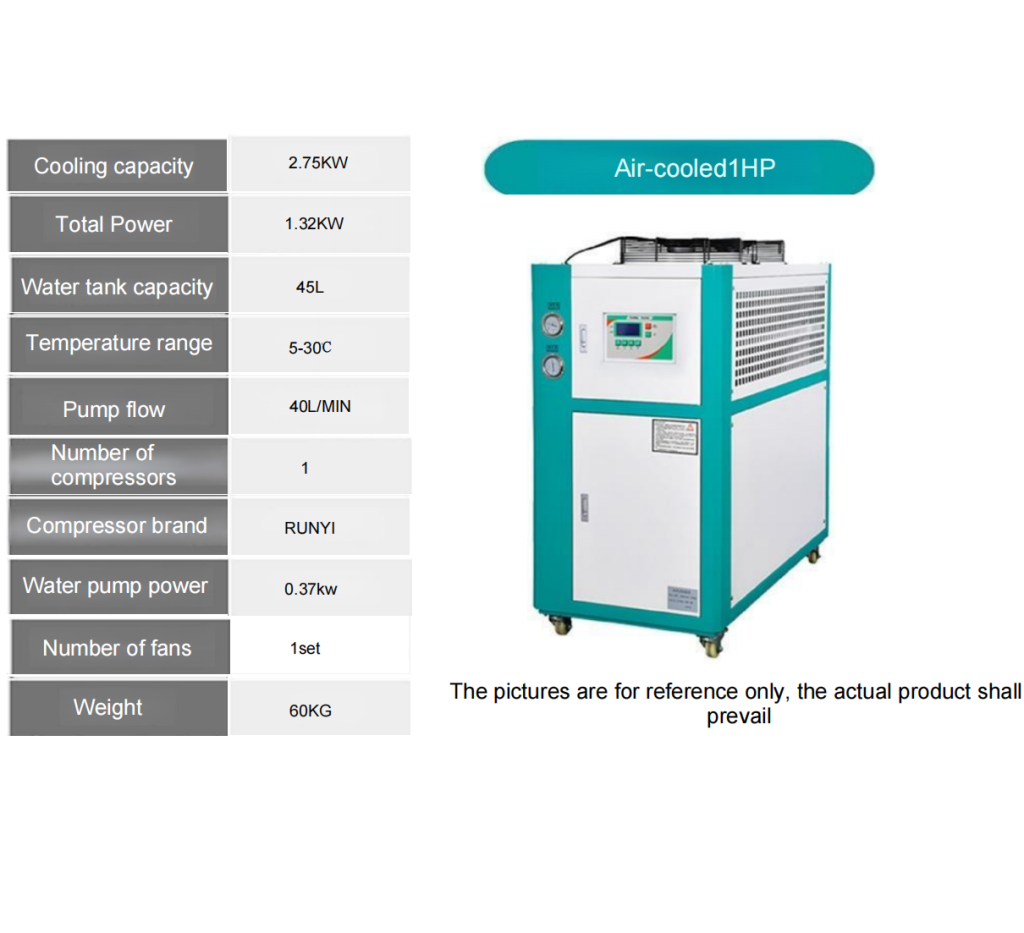

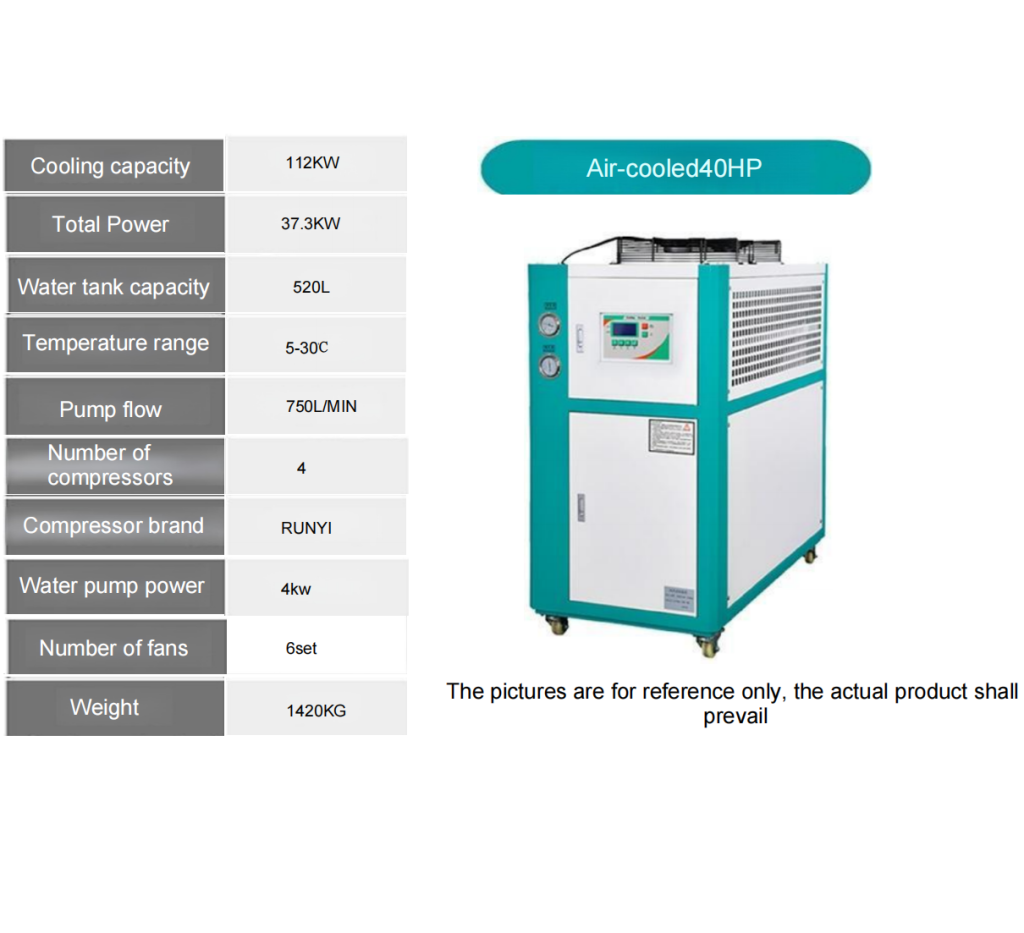

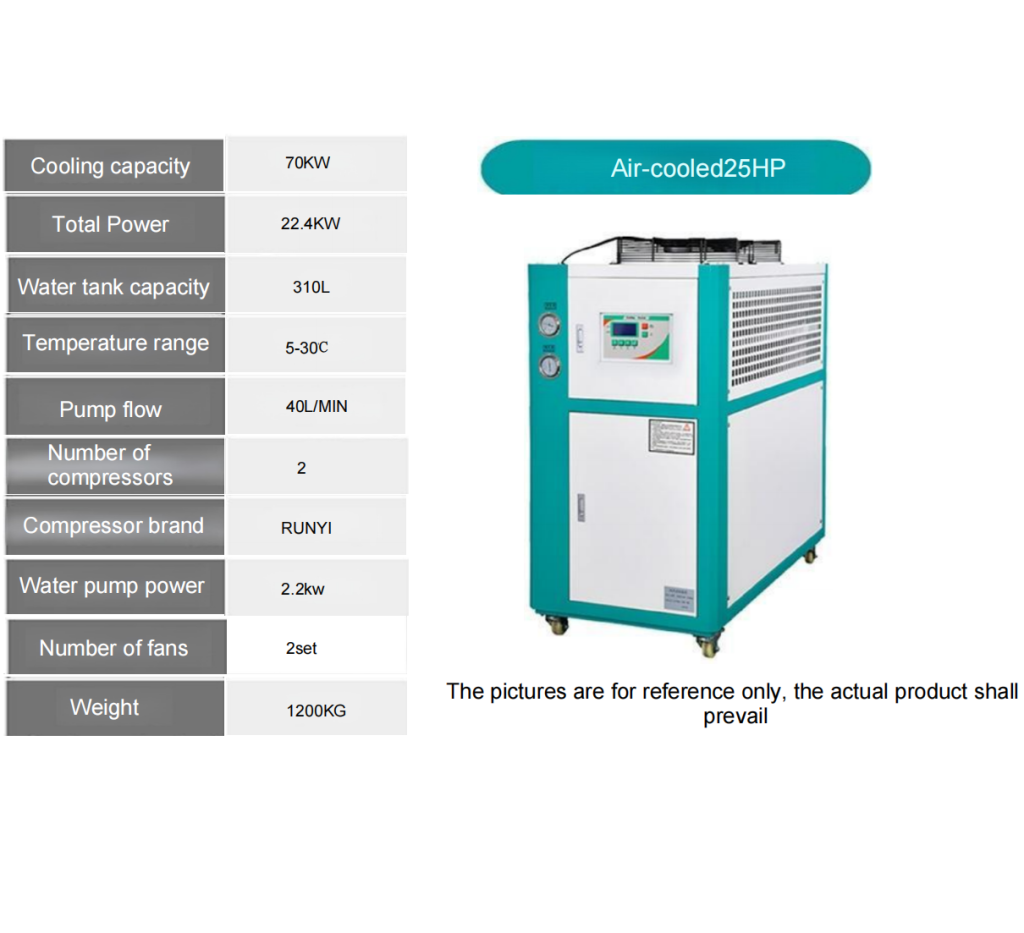

Machine Classification
- About Air-Cooled Chiller
Picture Explanation
- part 01

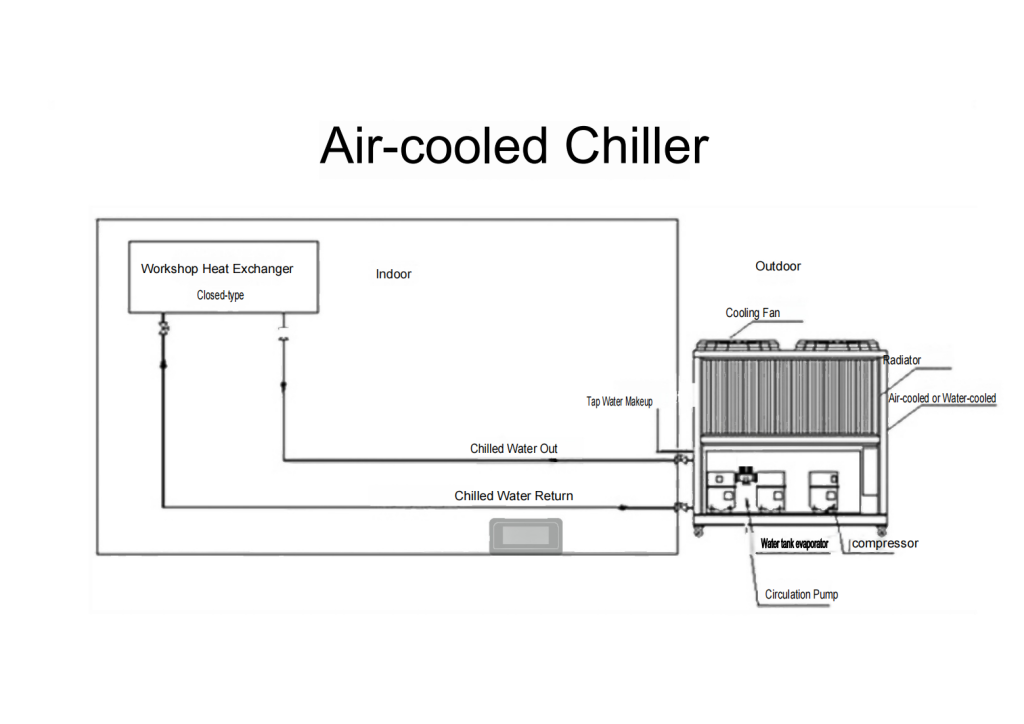

How It Works
- part 02

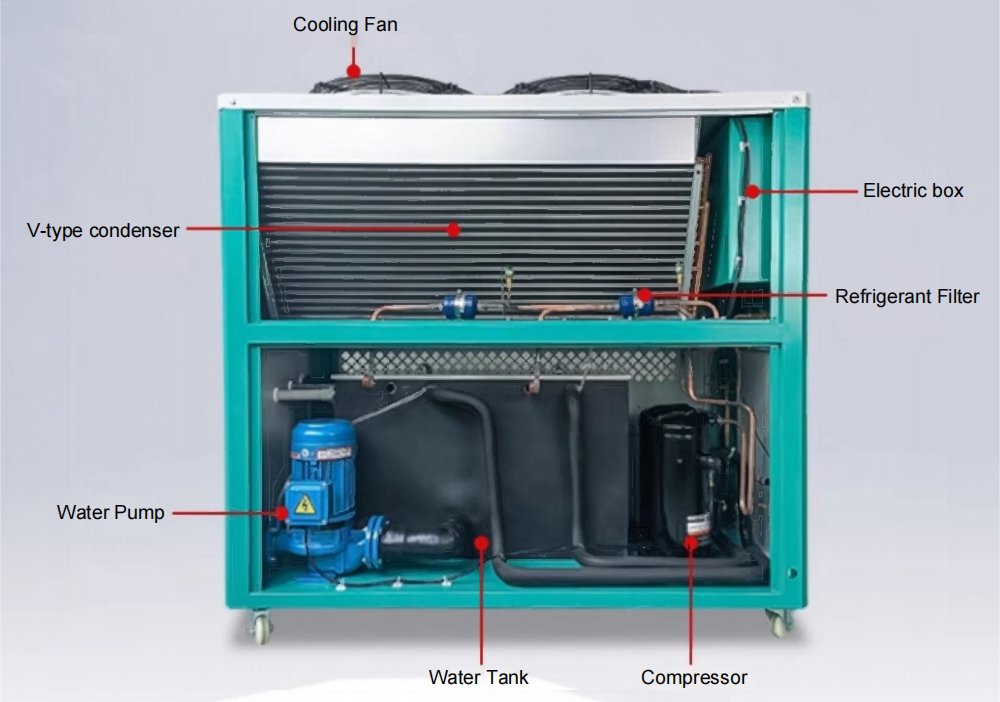

Internal structure
